nebula-dgl

nebula-dgl是用于Nebula Graph与深度图库（DGL）集成的库。

nebula-dgl仍处于WIP状态，有一个示例项目在此。

指南

安装

从PyPi安装

python3 -m pip install nebula-dgl
python3 -m pip install dgl dglgo -f https://data.dgl.ai/wheels/repo.html

从代码库安装（开发者版）

python3 -m pip install nebula3-python
python3 -m pip install dgl dglgo -f https://data.dgl.ai/wheels/repo.html

# build and install
python3 -m pip install .

游乐场

首先将此仓库克隆到您的本地目录。

git clone https://github.com/wey-gu/nebula-dgl.git
cd nebula-dgl

0. 使用Nebula-UP部署NebulaGraph游乐场

安装NebulaGraph

curl -fsSL nebula-up.siwei.io/install.sh | bash

加载示例数据

~/.nebula-up/load-basketballplayer-dataset.sh

1. 在同一docker网络中创建jupyter笔记本：nebula-net

docker run -it --name dgl -p 8888:8888 --network nebula-net \
    -v "$PWD":/home/jovyan/work jupyter/datascience-notebook \
    start-notebook.sh --NotebookApp.token='secret'

现在您可以

• 通过http://localhost:8888/lab/tree/work?token=secret访问笔记本并创建一个新的笔记本。

或者

• 在容器中运行ipython

docker exec -it dgl ipython
cd work

2. 在笔记本中安装nebula-dgl

安装nebula-dgl

!python3 -m pip install python3 -m pip install nebula3-python==3.3.0
!python3 -m pip install dgl dglgo -f https://data.dgl.ai/wheels/repo.html
!python3 -m pip install .

3. 使用同构图尝试

import yaml
import networkx as nx

from nebula_dgl import NebulaLoader


nebula_config = {
    "graph_hosts": [
                ('graphd', 9669),
                ('graphd1', 9669),
                ('graphd2', 9669)
            ],
    "nebula_user": "root",
    "nebula_password": "nebula",
}

with open('example/homogeneous_graph.yaml', 'r') as f:
    feature_mapper = yaml.safe_load(f)

nebula_loader = NebulaLoader(nebula_config, feature_mapper)
homo_dgl_graph = nebula_loader.load()

# or query based
query = """
MATCH p=()-[:follow]->() RETURN p
"""
nebula_loader = NebulaLoader(nebula_config, feature_mapper, query=query, query_space="basketballplayer")
homo_dgl_graph = nebula_loader.load()

nx_g = homo_dgl_graph.to_networkx()
nx.draw(nx_g, with_labels=True, pos=nx.spring_layout(nx_g))

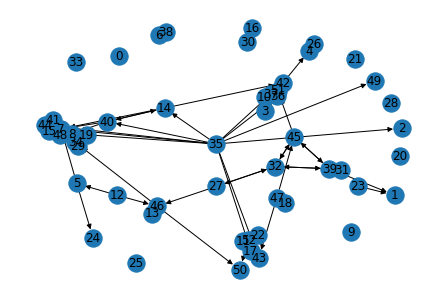

结果

4. 计算图的度中心性

nx.degree_centrality(nx_g)

结果

{0: 0.0,
 1: 0.04,
 2: 0.02,
 3: 0.02,
 4: 0.06,
 5: 0.06,
 6: 0.04,
 7: 0.24,
 8: 0.16,
 9: 0.0,
 10: 0.02,
 11: 0.04,
 12: 0.04,
 13: 0.04,
 14: 0.1,
 15: 0.04,
 16: 0.0,
 17: 0.1,
 18: 0.04,
 19: 0.04,
 20: 0.0,
 21: 0.0,
 22: 0.04,
 23: 0.02,
 24: 0.02,
 25: 0.04,
 26: 0.06,
 27: 0.0,
 28: 0.02,
 29: 0.0,
 30: 0.04,
 31: 0.12,
 32: 0.04,
 33: 0.22,
 34: 0.14,
 35: 0.1,
 36: 0.04,
 37: 0.14,
 38: 0.1,
 39: 0.02,
 40: 0.14,
 41: 0.08,
 42: 0.1,
 43: 0.12,
 44: 0.12,
 45: 0.08,
 46: 0.1,
 47: 0.02,
 48: 0.04,
 49: 0.12,
 50: 0.06}

Nebula Graph到DGL

from nebula_dgl import NebulaLoader


nebula_config = {
    "graph_hosts": [
                ('graphd', 9669),
                ('graphd1', 9669),
                ('graphd2', 9669)
            ],
    "nebula_user": "root",
    "nebula_password": "nebula"
}

# load feature_mapper from yaml file
with open('example/nebula_to_dgl_mapper.yaml', 'r') as f:
    feature_mapper = yaml.safe_load(f)

nebula_loader = NebulaLoader(nebula_config, feature_mapper)
dgl_graph = nebula_loader.load()

在networkx中玩同构图算法

import networkx

with open('example/homogeneous_graph.yaml', 'r') as f:
    feature_mapper = yaml.safe_load(f)

nebula_loader = NebulaLoader(nebula_config, feature_mapper)
homo_dgl_graph = nebula_loader.load()
nx_g = homo_dgl_graph.to_networkx()

# plot it
networkx.draw(nx_g, with_lables=True)

# get degree
networkx.degree(nx_g)

# get degree centrality
networkx.degree_centrality(nx_g)

Nebula Graph的多部分加载器

1. 目前，多部分加载器的速度像顺序扫描一样慢，需要分析性能。

import yaml
import networkx as nx
import matplotlib.pyplot as plt

from nebula_dgl import NebulaReducedLoader


nebula_config = {
    "graph_hosts": [
                ('127.0.0.1', 9669)
            ],
    "nebula_user": "root",
    "nebula_password": "nebula",
}

with open('example/homogeneous_graph.yaml', 'r') as f:
    feature_mapper = yaml.safe_load(f)

# you only need change the following line: from NebulaLoader to NebulaReducedLoader
# Easy for you to use the multi-part loader
nebula_reduced_loader = NebulaReducedLoader(nebula_config, feature_mapper)
homo_dgl_graph = nebula_reduced_loader.load()
nx_g = homo_dgl_graph.to_networkx()
nx.draw(nx_g, with_labels=True, pos=nx.spring_layout(nx_g))
plt.savefig("multi_graph.png")
