ITKFPFH

概述

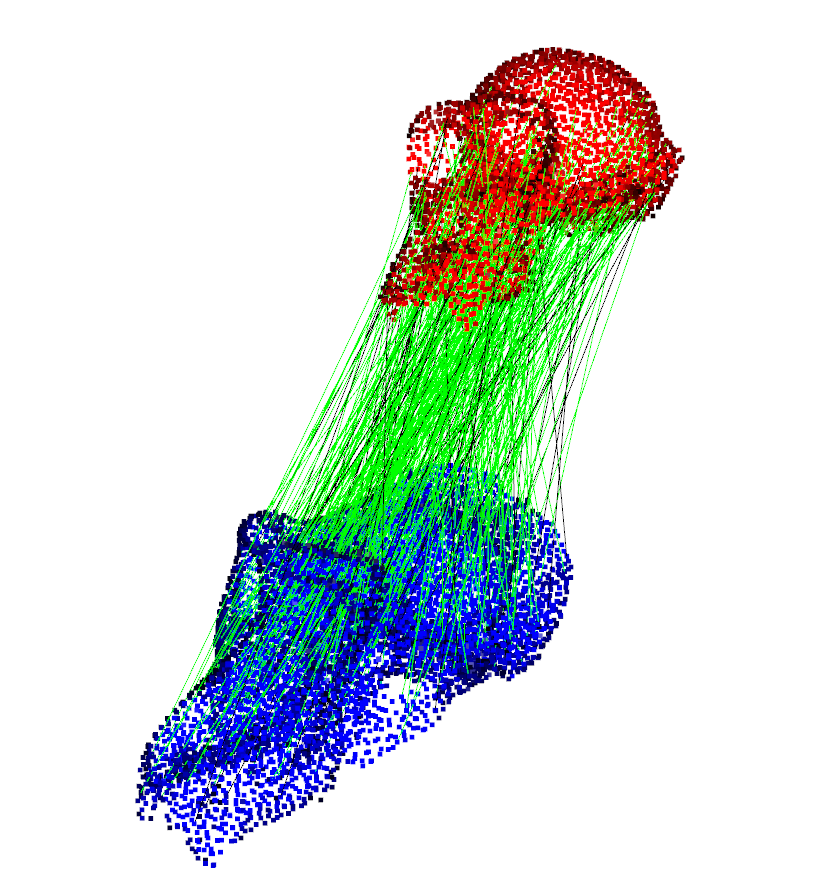

用于计算点集FPFH特征的模块。以下为示例用法：

# normal_pointset is ITK Pointset which contains normal vector for each point
# pointset is ITK Pointset which contains the input points for which feature needs to be calculated

# normal_np is numpy array of shape [Nx3]
# fpfh_feature is numpy array of shape [33xN]
# 25 is the radius and 100 is the maximum number of neighbors

pointset = itk.PointSet[itk.F, 3].New()
normal_pointset = itk.PointSet[itk.F, 3].New()

normal_pointset.SetPoints(itk.vector_container_from_array(normal_np.flatten()))
fpfh = itk.Fpfh.PointFeature.MF3MF3.New()
fpfh.ComputeFPFHFeature(pointset, normal_pointset, 25, 100)
fpfh_feature = fpfh.GetFpfhFeature()
fpfh_feature = itk.array_from_vector_container(fpfh_feature)
fpfh_feature = np.reshape(fpfh_feature, [33, pointset.GetNumberOfPoints()])

可以使用以下代码获取法线：

def getnormals_pca(inputPoints):
    import vtk
    from vtk.util import numpy_support
    meshPoints = numpy_to_vtk_polydata(inputPoints)
    normals = vtk.vtkPCANormalEstimation()
    normals.SetSampleSize(30)
    normals.SetFlipNormals(True)
    #normals.SetNormalOrientationToPoint()
    normals.SetNormalOrientationToGraphTraversal()
    normals.SetInputData(meshPoints)
    normals.Update()
    as_numpy = numpy_support.vtk_to_numpy(normals.GetOutput().GetPointData().GetArray(0))
    return as_numpy
