ddeint

Scipy-based延迟微分方程（DDE）求解器。有关更多信息，请参阅文档字符串和示例。

示例

from pylab import cos, linspace, subplots
from ddeint import ddeint

# We solve the following system:
# Y(t) = 1 for t < 0
# dY/dt = -Y(t - 3cos(t)**2) for t > 0

def values_before_zero(t):
    return 1

def model(Y, t):
    return -Y(t - 3 * cos(Y(t)) ** 2)

tt = linspace(0, 30, 2000)
yy = ddeint(model, values_before_zero, tt)

fig, ax = subplots(1, figsize=(4, 4))
ax.plot(tt, yy)
ax.figure.savefig("variable_delay.jpeg")

from pylab import array, linspace, subplots
from ddeint import ddeint

# We solve the following system:
# X(t) = 1 (t < 0)
# Y(t) = 2 (t < 0)
# dX/dt = X * (1 - Y(t-d)) / 2
# dY/dt = -Y * (1 - X(t-d)) / 2


def model(Y, t, d):
    x, y = Y(t)
    xd, yd = Y(t - d)
    return array([0.5 * x * (1 - yd), -0.5 * y * (1 - xd)])


g = lambda t: array([1, 2])
tt = linspace(2, 30, 20000)

fig, ax = subplots(1, figsize=(4, 4))

for d in [0, 0.2]:
    print("Computing for d=%.02f" % d)
    yy = ddeint(model, g, tt, fargs=(d,))

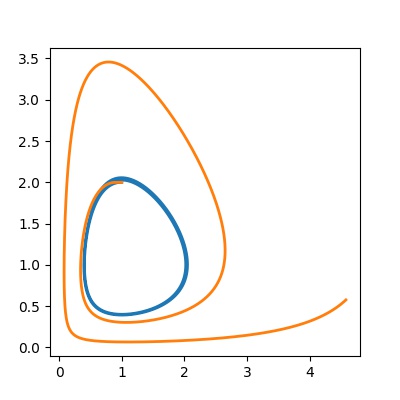

    # WE PLOT X AGAINST Y
    ax.plot(yy[:, 0], yy[:, 1], lw=2, label="delay = %.01f" % d)

ax.figure.savefig("lotka.jpeg")

许可

公有领域。欢迎 everyone 贡献！

安装

ddeint可以通过在一个目录中解压源代码并使用此命令进行安装：

(sudo) python setup.py install

您也可以使用此命令直接从Python包索引安装它：

(sudo) pip install ddeint
